Product Description
The Standard Automatic Rising Bollard is a reliable vehicle access control solution designed for residential communities, commercial entrances, parking areas and industrial facilities. It provides an effective way to manage vehicle access while maintaining a clean and modern appearance.
Made from high-quality SUS304 stainless steel, this automatic rising bollard features excellent corrosion resistance and durability for long-term outdoor operation. The polished or brushed surface finish enhances its appearance while helping it withstand different weather conditions.
Equipped with a stable electric drive system, the bollard provides smooth and efficient rising and lowering operation. With a standard rising height of 600mm and a compact structure, it is suitable for daily traffic management applications requiring controlled vehicle entry and exit.
The automatic rising bollard integrates reliable control functions and can be connected with various access control systems, including remote controllers, RFID readers, license plate recognition systems and other vehicle management solutions. Authorized vehicles can pass smoothly while unauthorized access is effectively restricted.
Designed with IP68 waterproof protection, the bollard can operate reliably in outdoor environments such as rain, dust and changing weather conditions. The built-in LED warning light and reflective strip improve visibility during daytime and nighttime operation, enhancing driving safety.
The Standard Automatic Rising Bollard is widely used in residential areas, office buildings, shopping centers, parking lots, industrial parks, schools and other locations requiring efficient vehicle access control.
| Technical Parameter | Specification |
|---|---|
| Bollard Diameter | 219 mm |
| Rising Height | 600 mm |
| Embedded Height | 800 mm |
| Bollard Thickness | 6 mm ± 0.5 mm |
| Cover Plate Thickness | 8 mm |
| Cover Plate Diameter | 360 mm |
| Lifting Time | 3–5 seconds |
| Power Supply | AC 220V |
| Material | SUS304 Stainless Steel |
| Protection Level | IP68 Waterproof |

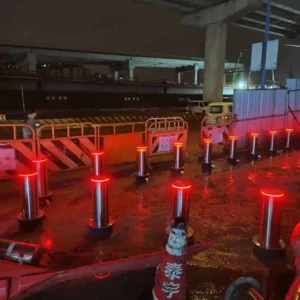

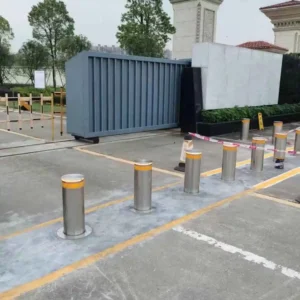

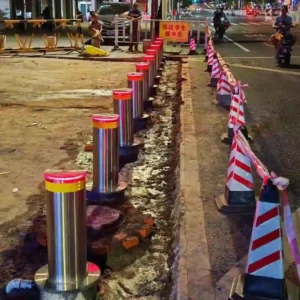

Application
Residential Communities
Automatic rising bollards provide controlled vehicle access for residential areas, apartment complexes and gated communities. They help manage authorized vehicle entry while maintaining a safe and organized living environment.
Commercial Buildings
Suitable for office buildings, shopping centers and business facilities, the bollards offer an effective solution for regulating vehicle movement and protecting pedestrian areas without affecting the appearance of the entrance.
Parking Lots & Garages
The automatic rising bollard system helps control vehicle access in parking areas, preventing unauthorized entry and improving traffic management efficiency.
Industrial Parks & Factories
Designed for industrial entrances and restricted areas, these bollards provide reliable access control for factories, warehouses and logistics facilities where controlled vehicle movement is required.
Schools & Public Facilities
Automatic rising bollards help improve safety around schools, campuses and public buildings by controlling vehicle access and reducing unnecessary traffic in pedestrian zones.
Hotels & Hospitality Areas
Installed at hotel entrances, resorts and premium properties, the bollards provide convenient vehicle management while maintaining a clean and modern entrance design.
Government & Restricted Areas
Suitable for government buildings and controlled-access zones that require reliable vehicle entry management and enhanced perimeter protection.
