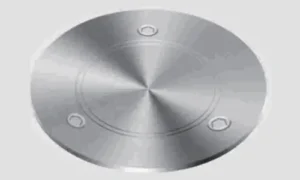

1. 304 Stainless Steel Top Panel
Durable 304 stainless steel top panel with excellent corrosion and wear resistance. The reinforced design provides reliable support when the bollard is fully lowered and helps maintain long-term outdoor performance.

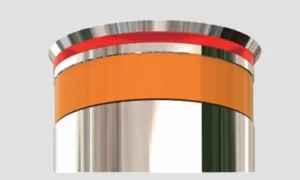

2. High-Visibility LED Warning Light
Integrated LED warning light improves visibility at night and in low-light conditions. The bright warning band helps drivers quickly identify the bollard position for safer vehicle access control.

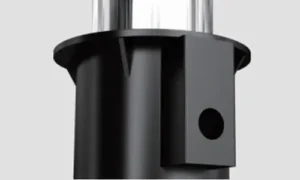

3. Reinforced Stainless Steel Flange
Heavy-duty stainless steel flange strengthens the connection between the rising bollard and underground housing. The reinforced structure provides greater stability and durability during frequent operation.

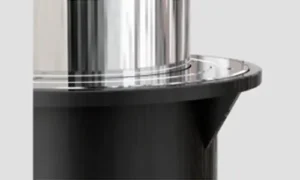

4. 304 Stainless Steel Bollard Body
The bollard cylinder is made of high-quality 304 stainless steel with a polished surface for excellent corrosion resistance, durability, and a clean professional appearance in outdoor environments.
The automatic retractable bollards is a reliable vehicle access control solution designed to manage authorized and unauthorized vehicle entry at controlled entrances. Powered by an integrated electro-hydraulic drive system, the bollard can automatically rise and lower within seconds, providing efficient traffic management while maintaining a clean and professional entrance appearance.
The bollard body is manufactured from durable stainless steel for excellent corrosion resistance and long-term outdoor use. Its reinforced structure is designed to withstand frequent vehicle traffic, while optional LED warning lights and reflective bands improve visibility during nighttime operation and poor weather conditions. Integrated hydraulic systems used in this product category also provide smooth, stable and relatively quiet operation.
The system can be operated by remote control, push button or centralized control system, and can also be integrated with license plate recognition, RFID readers, access control systems and other intelligent entrance management equipment. Multiple bollards can be controlled together to create a complete vehicle access control solution for different projects.
Automatic retractable bollards are suitable for residential communities, schools, commercial buildings, industrial parks, parking entrances, logistics facilities and other controlled vehicle access areas. Different bollard diameters, heights, wall thicknesses, finishes and control configurations can be customized according to project requirements.
| Technical Parameter | Specification |
|---|---|
| Bollard Diameter | 219 mm, Customizable |
| Rising Height | 600 mm, Customizable |
| Embedded Depth | 1100 mm |
| Bollard Thickness | 6 ± 0.5 mm |
| Bollard Material | 304 Stainless Steel |
| Flange Plate Size | 360 × 360 mm |
| Rising / Lowering Time | 3–5 Seconds |
| Waterproof Rating | IP68 |
| Power Supply | AC 220V |
| Motor Power | 350 W |
Application
Automatic retractable bollards are widely used for vehicle access control, traffic management, and entrance security in different environments, including:
- Residential Communities
- Commercial Buildings
- Industrial Parks
- Government Facilities
- Schools and Campuses
- Parking Entrances
- Hotels and Office Buildings
- Logistics Centers
- Pedestrian Areas
- Restricted Vehicle Access Zones
