Product Details

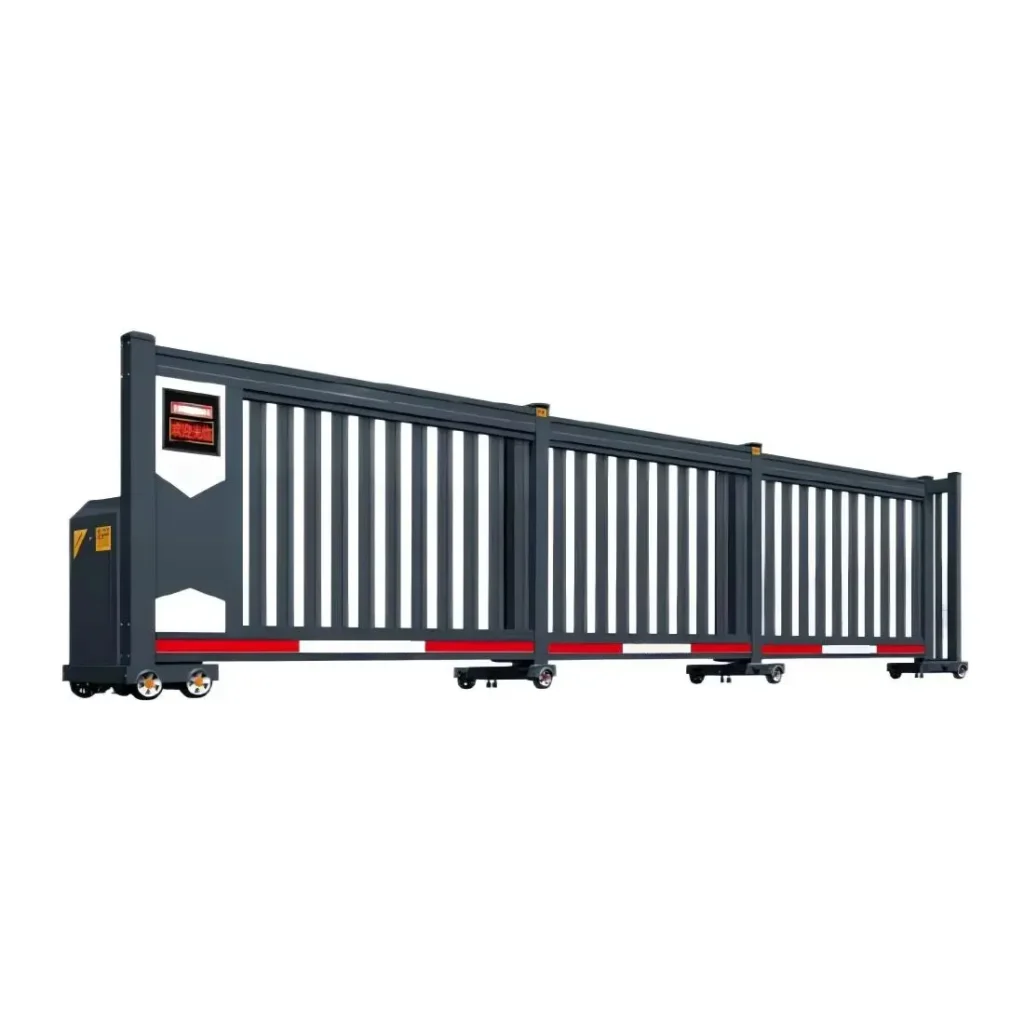

Our Telescopic Sliding Gate is a space-saving entrance solution designed for wide vehicle access points where the available side-retraction space is limited. Unlike a conventional single-panel sliding gate, the telescopic gate uses multiple synchronized gate sections that overlap with each other during opening, allowing a wide entrance to be secured with a shorter storage area.

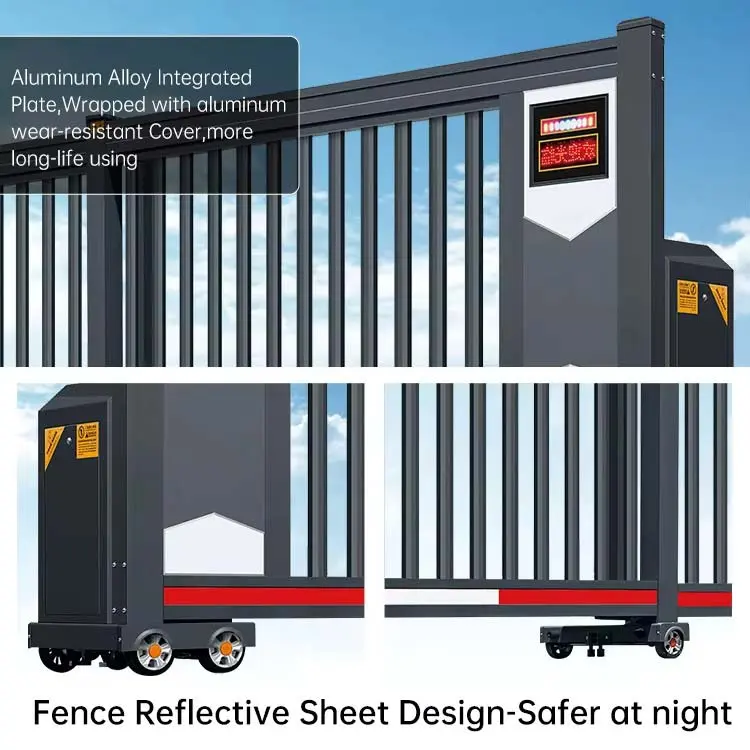

The gate structure is manufactured from high-strength aluminum alloy profiles, providing good rigidity, corrosion resistance, and reliable outdoor performance. Its multi-section telescopic design makes it suitable for factories, industrial parks, logistics centers, warehouses, residential communities, commercial properties, and other entrances with frequent vehicle traffic.

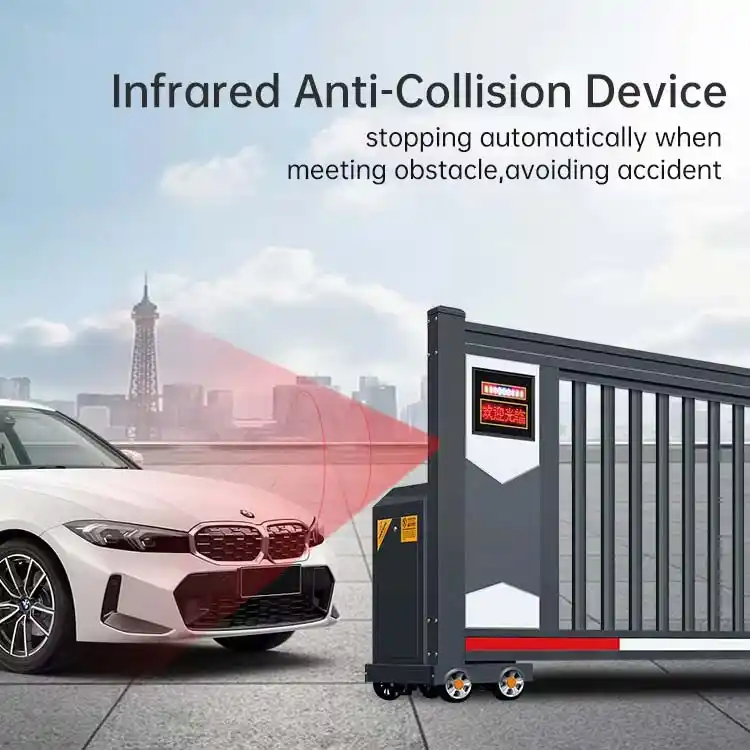

For automatic operation, the gate can be equipped with a motor-driven control system for smooth and coordinated opening and closing. Optional safety devices such as infrared photocells, safety edges, and obstacle detection sensors can help protect vehicles and pedestrians during operation.
The automatic telescopic sliding gate can also be integrated with ANPR/LPR license plate recognition, RFID card readers, remote controls, loop detectors, intercom systems, face recognition, and other intelligent access control equipment.
Gate width, height, color, number of telescopic sections, panel style, motor configuration, and access control system can all be customized according to different project requirements.
For entrances that require a wide opening but do not have enough space for a traditional sliding gate, a telescopic sliding gate provides a practical combination of space efficiency, security, automatic access, and flexible customization.

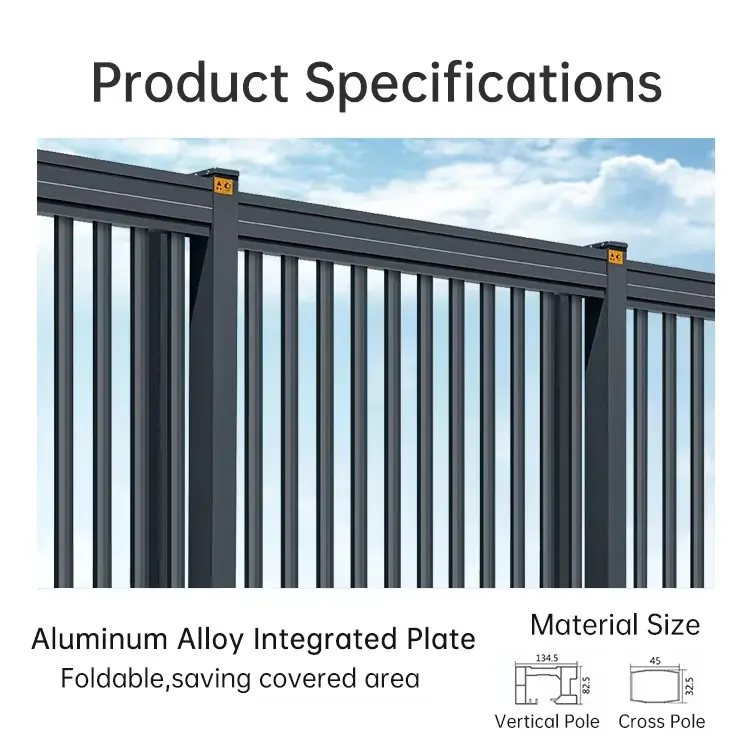

| Technical Parameter | Specification |
|---|---|
| Upper Beam | 134.5 × 82.5 mm, Thickness 1.7 mm |
| Lower Beam | 134.5 × 82.5 mm, Thickness 1.7 mm |
| Vertical Post | 100 × 100 mm, Thickness 1.4 mm |
| Vertical Aluminum Panel | 188 × 6.7 mm, Thickness 1.2 mm |
| Horizontal Beam | 80.3 × 15 mm, Thickness 1.0 mm |
| Standard Gate Height | Approx. 1.6 m from Ground to Highest Point |
| Gate Type | Automatic Telescopic Sliding Gate |
| Structure | Multi-Section Telescopic Sliding Structure |
| Material | Aluminum Alloy |
| Customization | Width, Height, Color, Section Quantity and Control System Can Be Customized |
Application
Industrial Parks
Ideal for factories and industrial facilities that require secure and efficient vehicle access.
Logistics Centers
Suitable for wide entrances with frequent trucks, delivery vehicles, and high daily traffic.
Residential Communities
Provides convenient and controlled vehicle access for gated communities and residential compounds.
Commercial Properties
Suitable for office buildings, shopping centers, business parks, and private parking entrances.
Government & Public Facilities
Can be integrated with ANPR, RFID, intercoms, and access control systems for managed vehicle entry.
